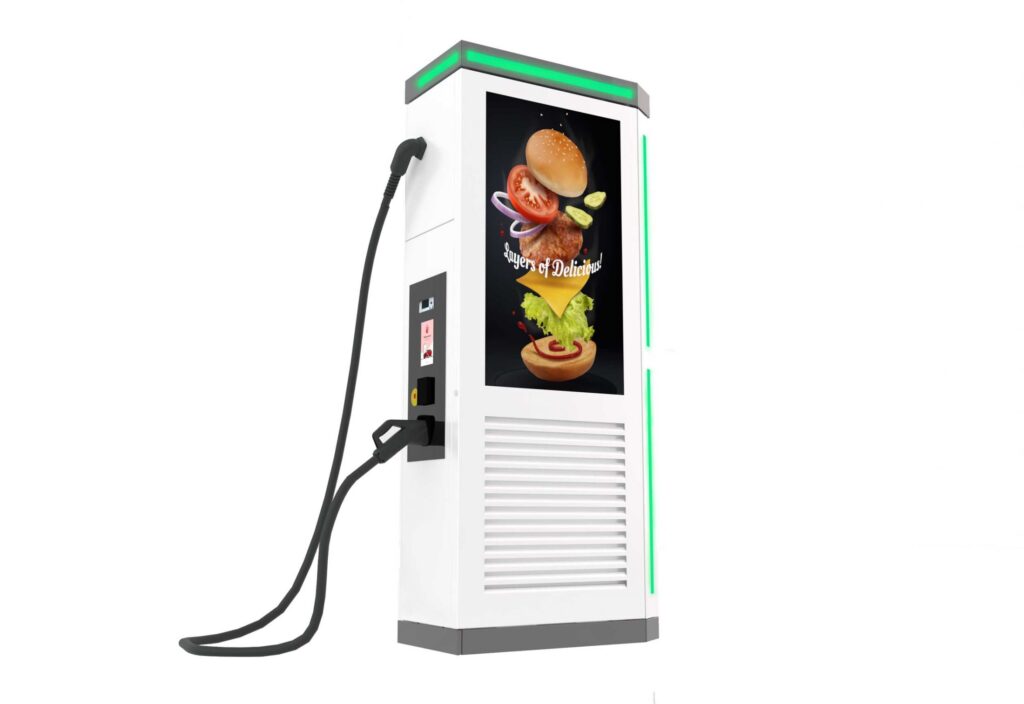

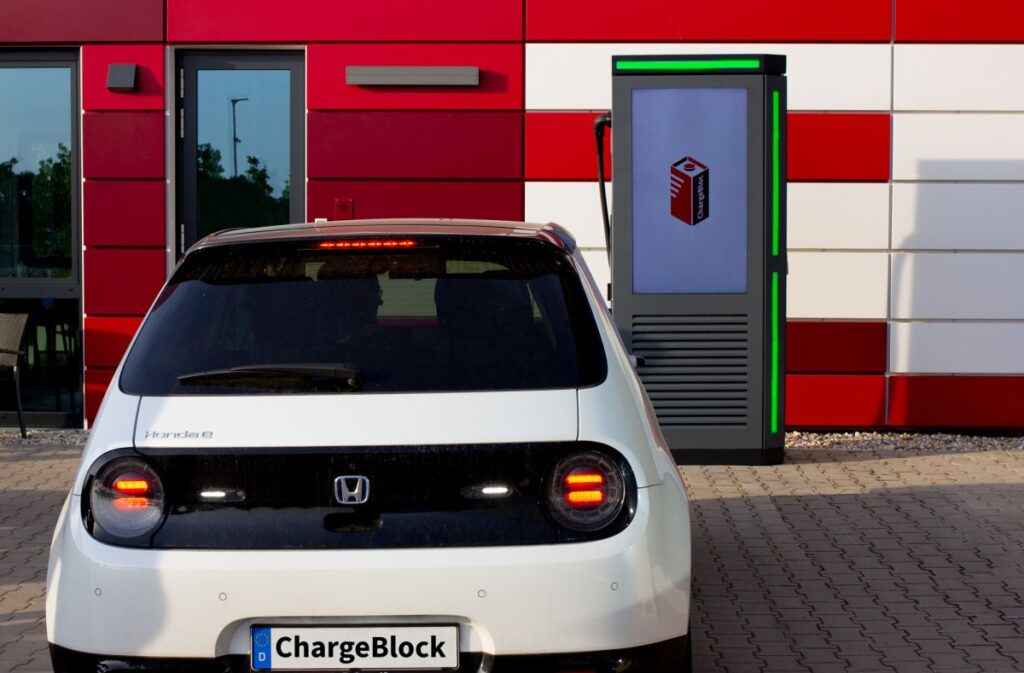

The water cooled ChargeBloc™ type CS150 150 kW DC-Charging Station is the perfect fit for public DC charging. Based on the latest power module design this charging system combines power and reliability with an attractive design and easy operability.
The system also provides an industry leading small footprint (aprox. 0,5 sqm), extremely quite operation and can be scaled up to meet extra high-power demands or provide upgrade capability for future extensions. In addition the high-definition media panel option of the CS150 charging station delivers media content directly to the street and enables further revenue streams for e.g. advertisement.
The ChargeStation (CS150) is a bidirectional potential-free HPC charging station according to CCS standard. The connection to the power supply network is made on the 400 V or 690 V level. No further isolating transformers, conversion units or other components are required. The project planning effort is minimal.
By using the core component CB150i (ChargeBloc 150 – power electronics module), it is possible to integrate e-vehicles into a Smart Grid as stationary storage units.
| Nominal input voltage | 400 V AC / 690 V AC |
| Nominal power | 150 kW |
| Output voltage | 200 V – 1000 V |
| Output current | 0 A – 500 A |
| Interface | CCS |
| THD | <3% |
| Output cut-off current Iout,max | >97% |
| Backend-Interface | OCPP |
| Dimensions | 517 x 1035 x 2431 |
| Weight | 650 kg |
